Mixture of LPG and Air Interchangeable to Natural Gas

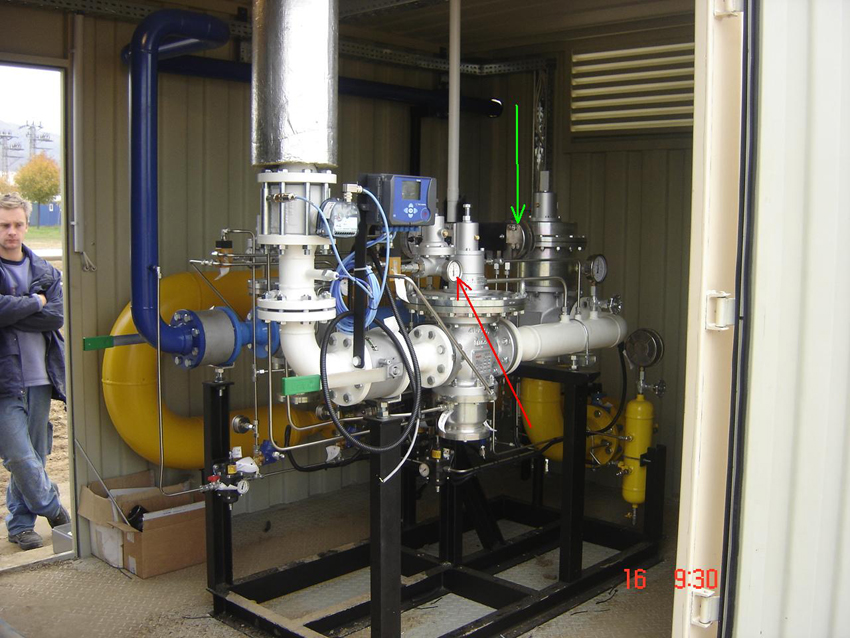

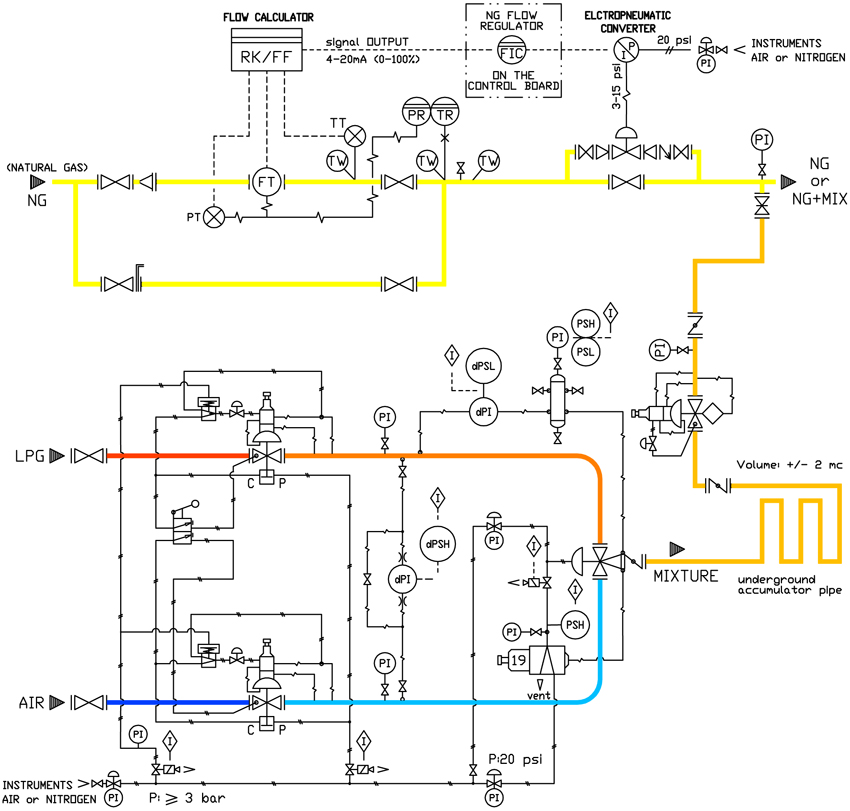

The solution to Suzuki's request combines two units. The first is a mixing unit which feeds into the Natural Gas network an interchangeable mixture of LPG/air, during peaks of consumption. The second unit is an automatic flow control system, directly installed in the network, which limits the Natural Gas supply to a pre-set value.

• Mixture Capacity Range: 0 - 3200 Nm³/h
• Mixture Outlet Pressure: 2.5 bar
• Mixture Pressure supplied to N.G. network: 1.5 bar
• Mixture Average Composition: 53% LPG + 47% Air
• Mixture Wobbe Index: 12000 kcal/Nm³
• Mixture HHV: 14150 kcal/Nm³

• Natural Gas max Capacity: 4500 Nm³/h
• Natural Gas limited Capacity: 2500 Nm³/h
• Natural Gas Regulated Pressure: 1.6 bar
• Natural Gas HHV: 9080 kcal/Nm³
• Natural Gas Wobbe Index: 11995 kcal/Nm³
